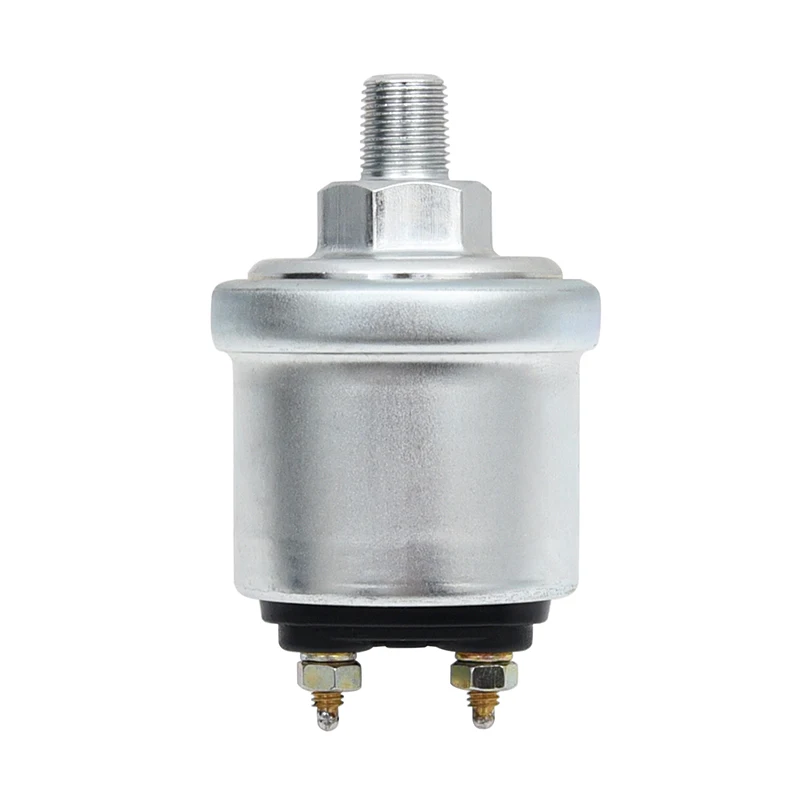

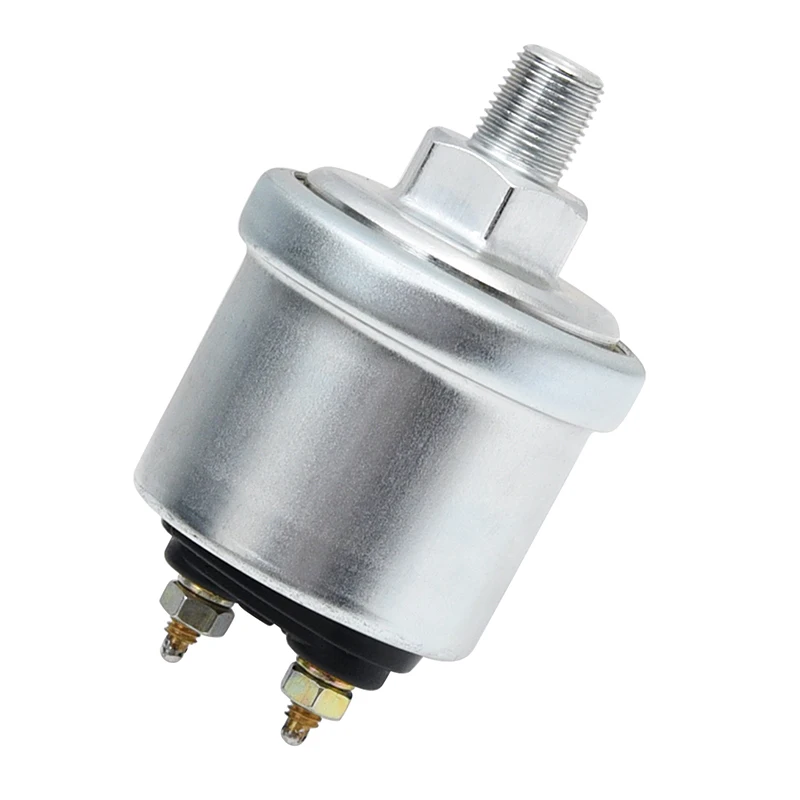

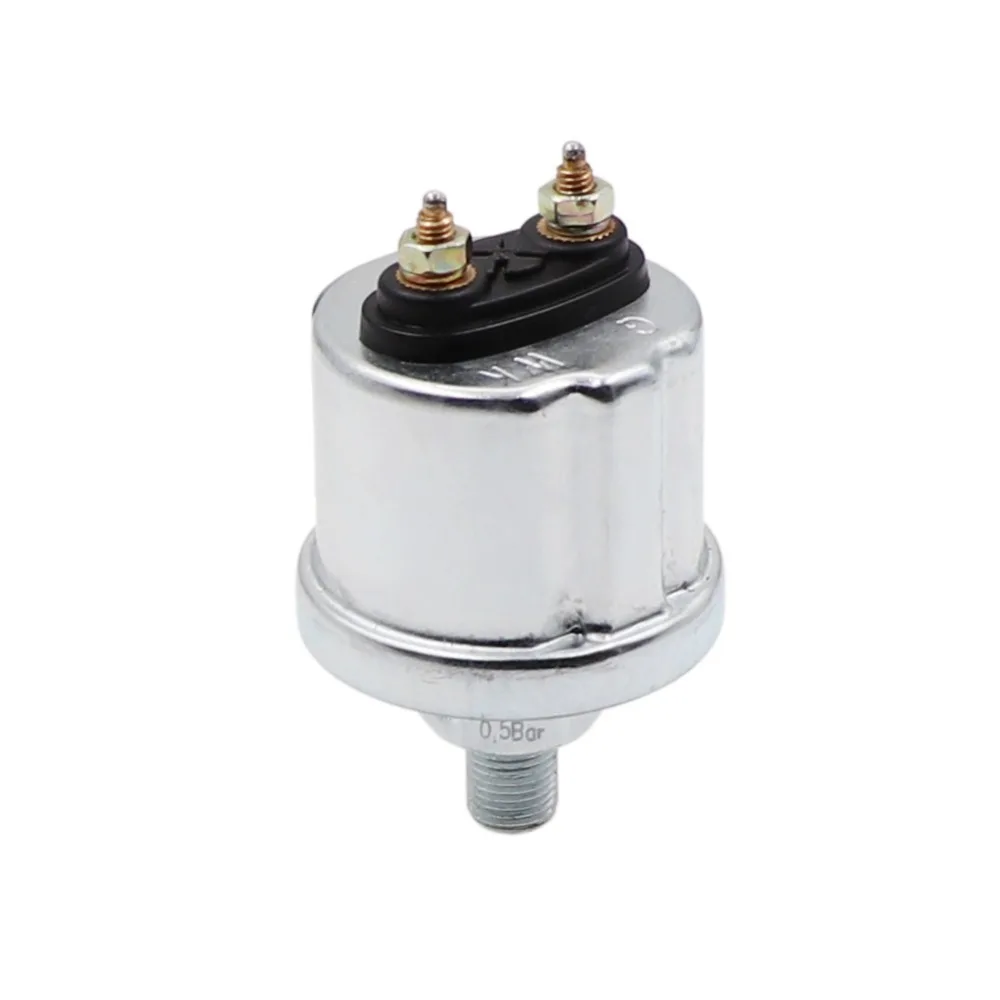

Engine Oil Pressure Sensor with Measuring Range 0~5 Bar /0~10 Bar fit for Car Boat Oil Pressure Gauge Sender M10 & NPT-1/8
Availability:
513 in stock
$30.00
Operating Voltage:6~24V
Conducting Power: Operating Temperature: -25 ~120°C(120°C MAX 1H)
Please attention we have 2 model Oil Pressure Gauge Sensor Measuring Range: 0~5Bar or 0~10Bar
2 Model Thread fitting: NPT-1/8, M10*1
Alarm: 0.8Bar
Standard Resistance Value: 10~184 ohm
Protection Rank: IP66

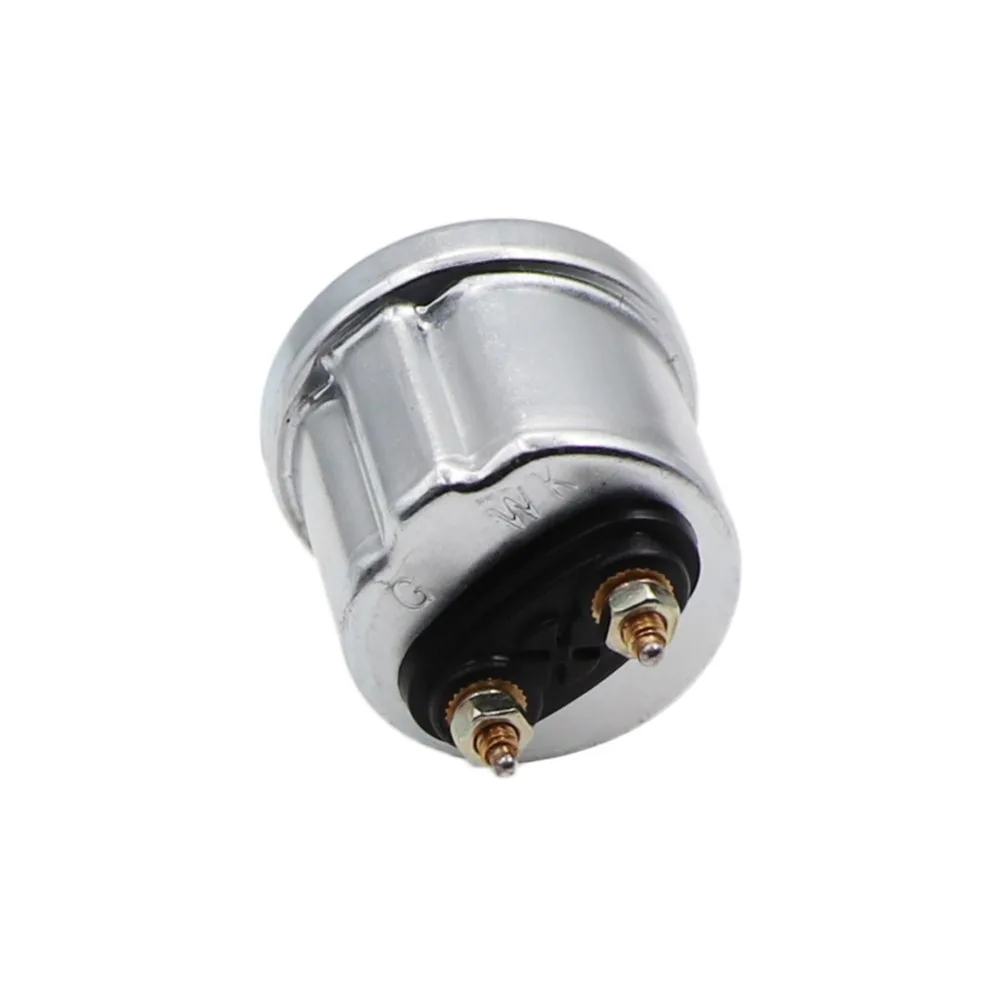

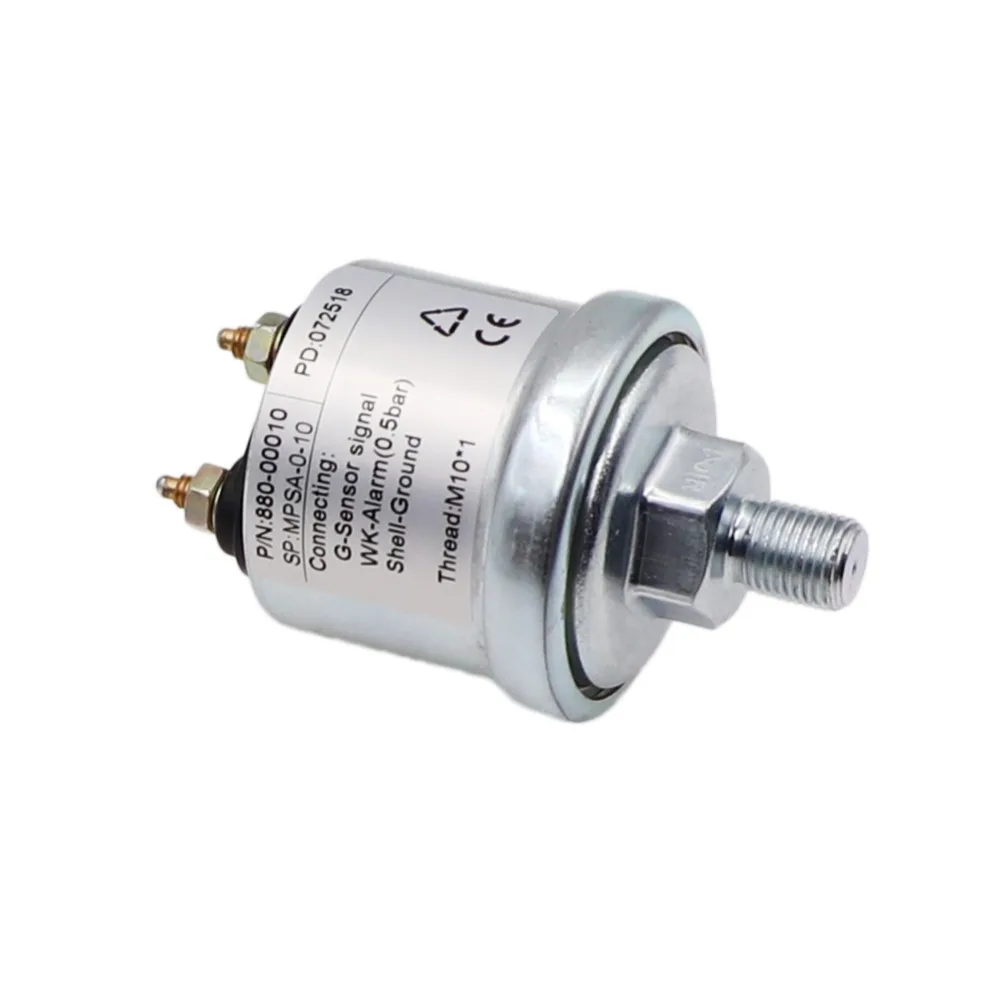

Sensor wiring: G-termination is conected to signal ,WK termination is connnected to alarm
Packing List
1* Oil Pressure Sensor
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Repeatability | No |
| Hysteresis | Oil Pressure Gauge |
| Linear | No |
| Measuring Range | MPSA-0-5 0.5bra, 0~5Bar, 0~10Bar |
| Resolution | Oil Pressure Sensor |
| Sensitivity | other |
| Sensor Type | Photoelectric |
| Signal Type | Voltage Signal |
| Style | Capacitance Type |
| Type | Oil Pressure sensor |
| Brand Name | ACCESTING |
| Origin | Mainland |
| Product Name | Mechanical Oil Pressure Sensor |
| Thread Fitting | M10*1/ NPT-1/8 |
| Alarm | 0.5 Bar |
| Output Signal | 10~184 ohm |
| Operating Voltage | 6~24 V |
| Sensor fit | Oil Pressure Gauge Sensor |
| function | Oil Pressure Sender |
