9 Inch Tuya Wifi Smart Video Door Phone Intercom System With 1Monitor and Doorbell Camera and 1 Lock Set Phone APP Unlock

This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and
advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.
It controls electric lock directly.
Can reduce the load of access controller, save wiring to reduce the hidden trouble
Based delay control circuit, lock time can be in 0-15 seconds
Automatic protection function, unexpected situations such as when the power supply
short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
Operative device: E/M Lock, Access Controller, Exit Push Button.
Remote Control
If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:
Electric Control Door Lock Main Feature
Very Good Quality Item.
Adopting the most advanced mechanical design, production technology in Taiwan.
Can work with wood door, steel door, stainless steel door.
Static electricity power consumption, long service life, strong security.
Specifications
Can suit both Left and Right hand door (by rotating the lock 180 degree)
NO (open when powered) Fail Secure Operating Mode
Can work with all the video intercom system in my store
High-quality stainless steel
High anti-theft and high safety
Double lock heads inside and outside
With electronic-control unlocking unit and a spring adjusting balance unit
Easy to install
User friendly
Support manual unlocking, 3 keys included
Suitable for : home, offices, schools, hotels, factories, warehouses, etc
Certification: FCC, CE
Technical Information:
Voltage : DV 9 ~ 12V, 1.5A
Power : > 12W
Operating Mode: NO (open when powered)
Dimensions (strike):
– Approx. 36 (W) x 102 (H) x 51 (D) mm
– Approx. 1-3/8″ (W) x 4″ (H) x 2″ (D) inch
Dimensions (main body):
– Approx. 123 (W) x 105 (H) x 35 (D) mm
– Approx. 4-3/4″ (W) x 4-1/8″ (H) x 1-3/8″ (D) inch

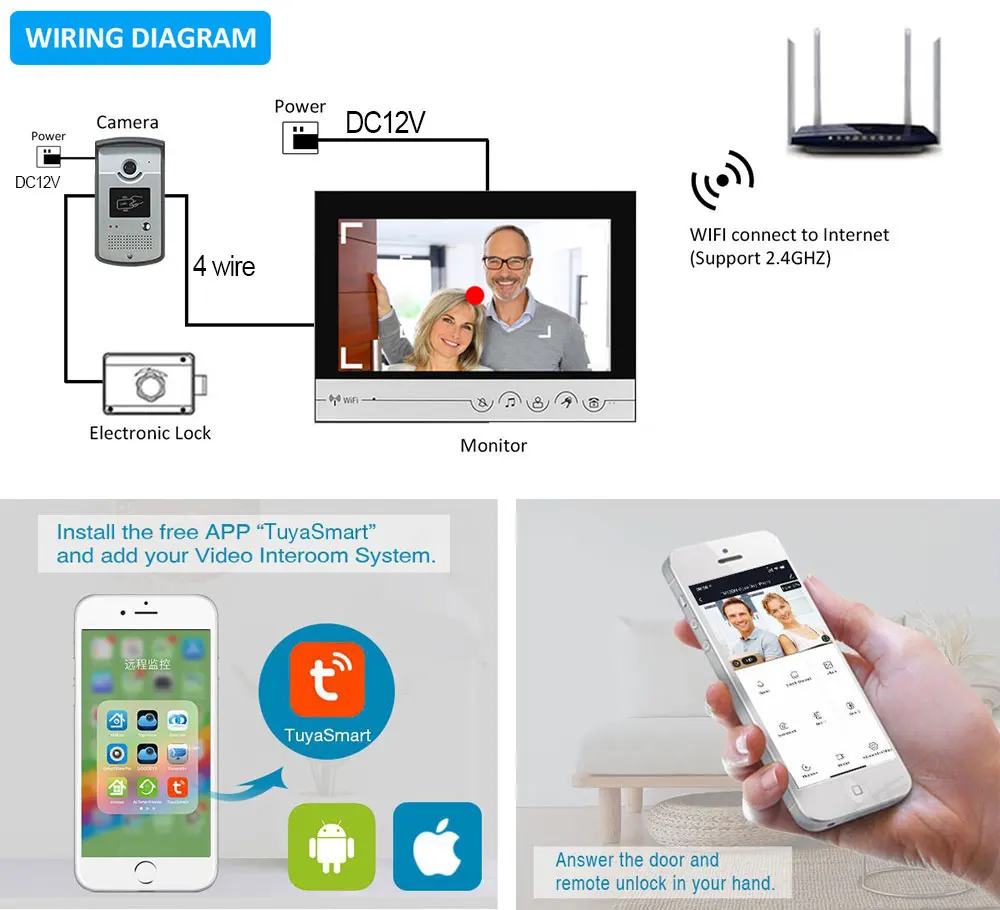

Indoor monitor & Outdoor camera Wiring diagram
Wiring Instruction
It is a 4-wire system, we will provide 4 core connectors in the package, you need use 4 core cable to do the connection. Please refer to below wiring.(Please note the e-lock / Power Supply BOX at below photo is not included, if you need, please feel free to contact us)
Power Supply
There is one external power supply (15V2A) in the box for the indoor monitor for base installation.If you don’t want to use the external power you can extend the electric wire to your DIN rail power supply or home power center.
About Wireless Connetion:
Wifi video intercom system does not mean you don’t need wire any cable.The monitor support WIFI network(only connect with 2.4GHZ router band), but the indoor monitor and doorbell is Wired.
4 wires for the click to buy link
About the extension wire:
The extension wires is not included in the box, there are the 4-wire/ connectors for you connect the extension wires.You can use 4-wire wires to extend the monitor to doorbell, monitor to monitor according to your need, maximum distance can exceed 80m.
The Package included
Packing includes:

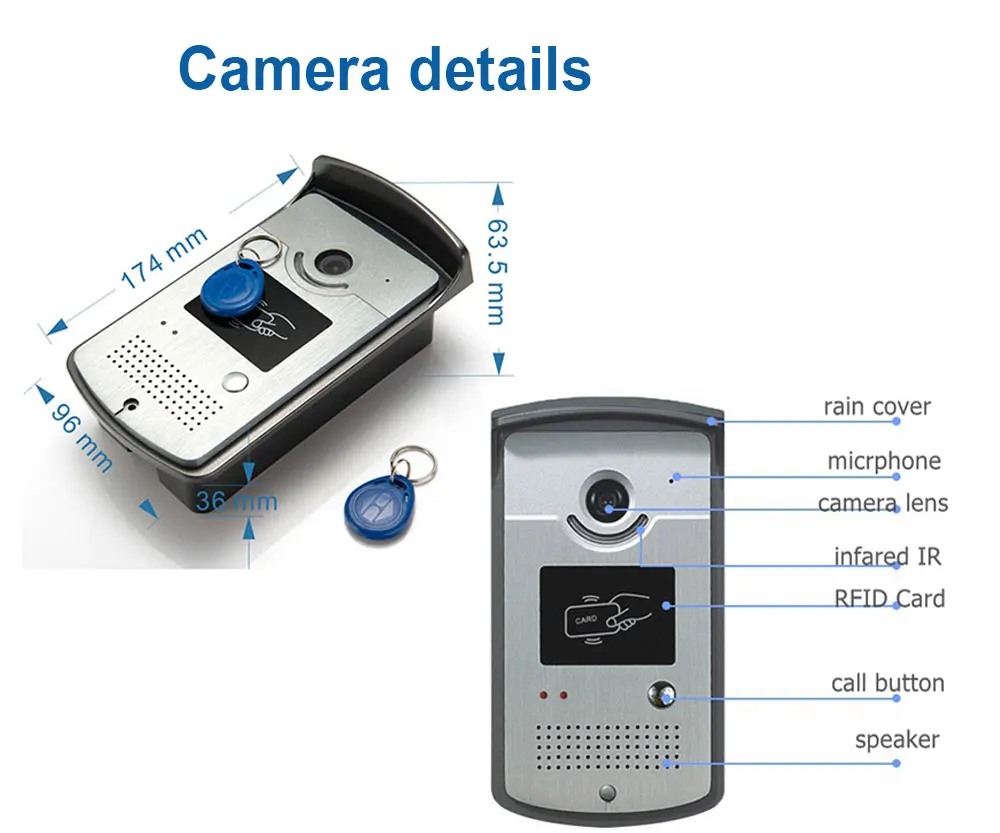

1 * Outdoor unit
1 * Indoor Unit
1 * Power Supply
1 * Mounting plate
1 * Bag of screws
1 * User manual
1 x testing cable
1 x exit switch

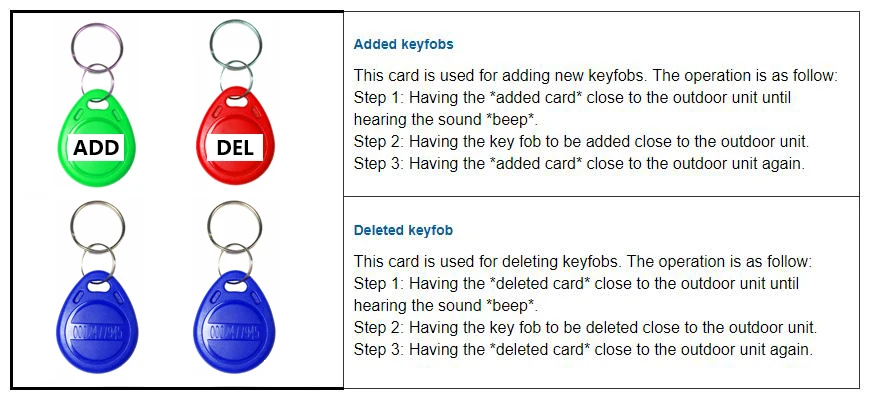

12 *125KHz RFID Cards
1 x Remote control (NOTE:The remote control without batteries)
