2*25W 50W Amplifier 7V-15V MP3 Player Decoder Board Bluetooth-compatible 5.0 Car FM Radio Module TF USB AUX WMA Player Decoder
9806 in stock
$14.01
9806 in stock
2*25W Amplifier DC 7-15V
Model: JQ-D010BT (Power: 2*25W)
Bluetooth version 5.0

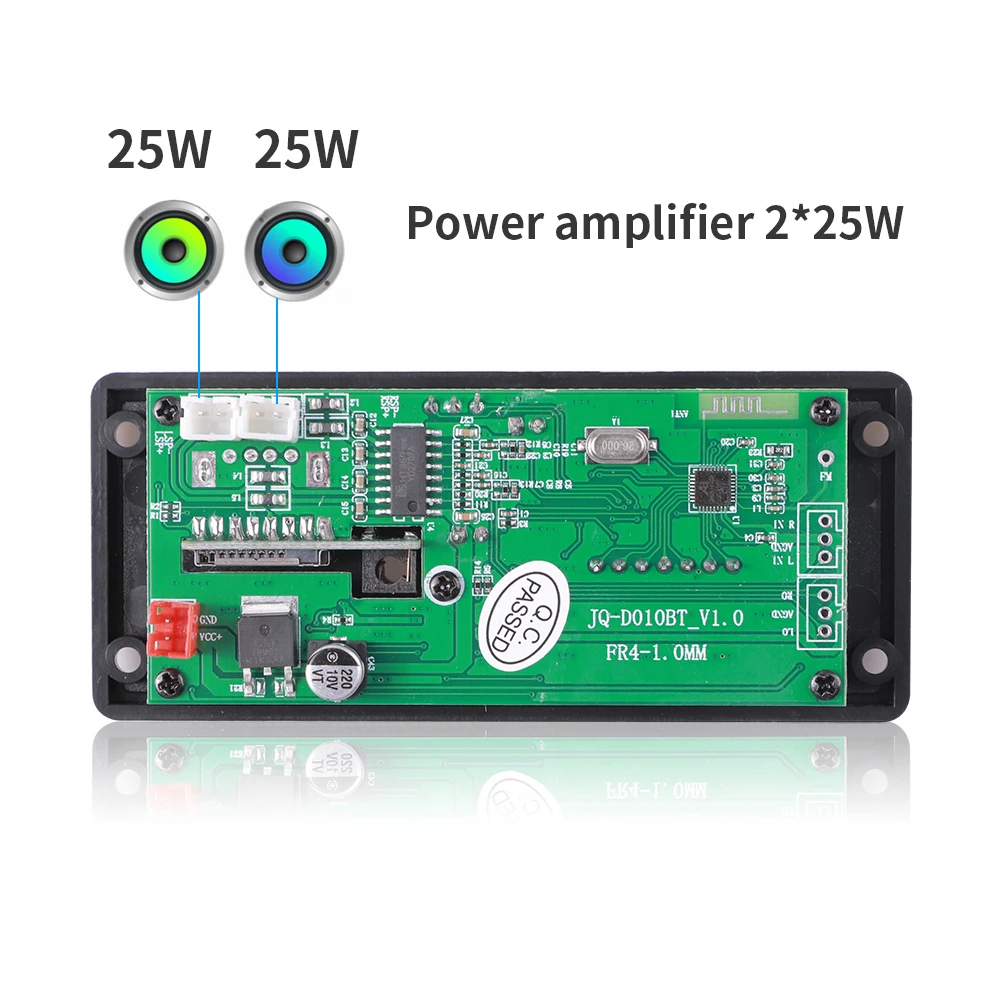

Power amplifier ICCS8673E, power: 2*25W
Bluetooth calling function
recording function
Music format: MP3/WMA/WAV/FLAC/APE lossless format music
Radio FM frequency: 87.5—107.5 MHZ
Folder switching function
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 7V-15V

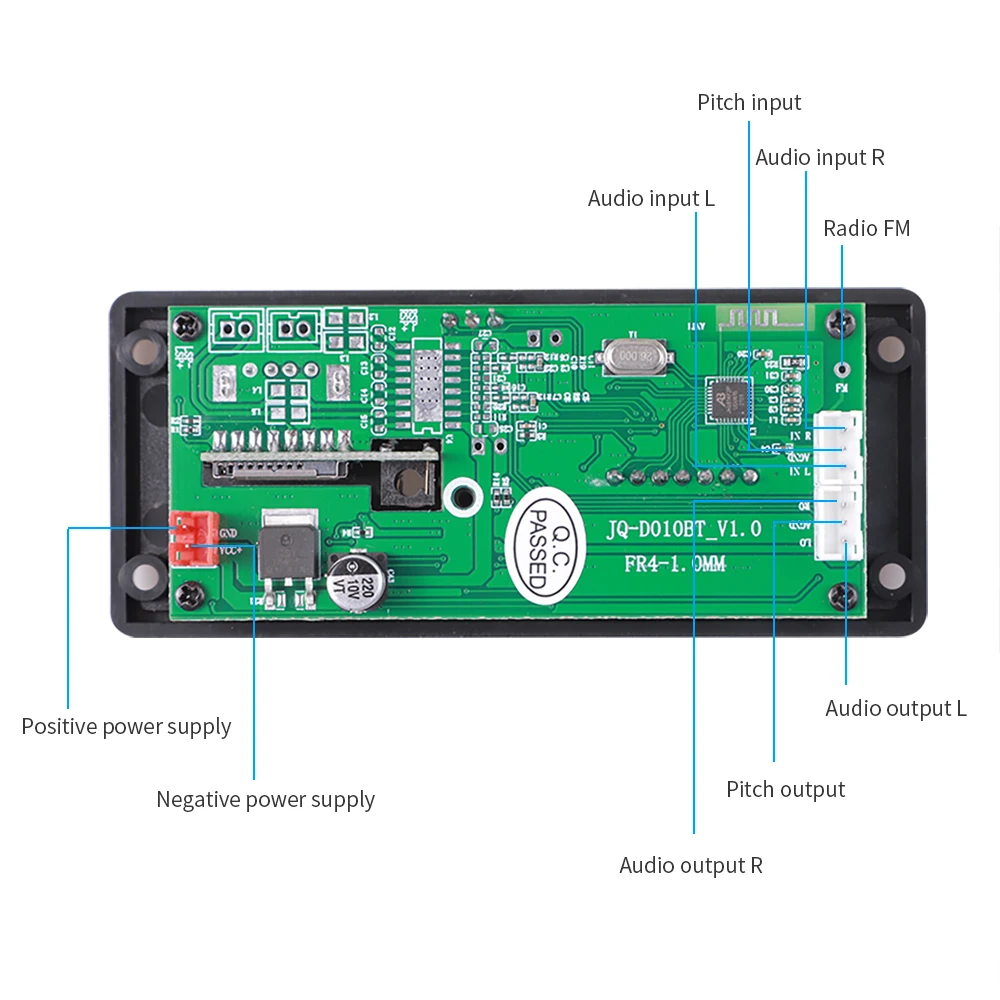

About the structure: Panel size: length 94 * width 40MM, the panel is surrounded by screw holes, the depth of the panel is 20MM

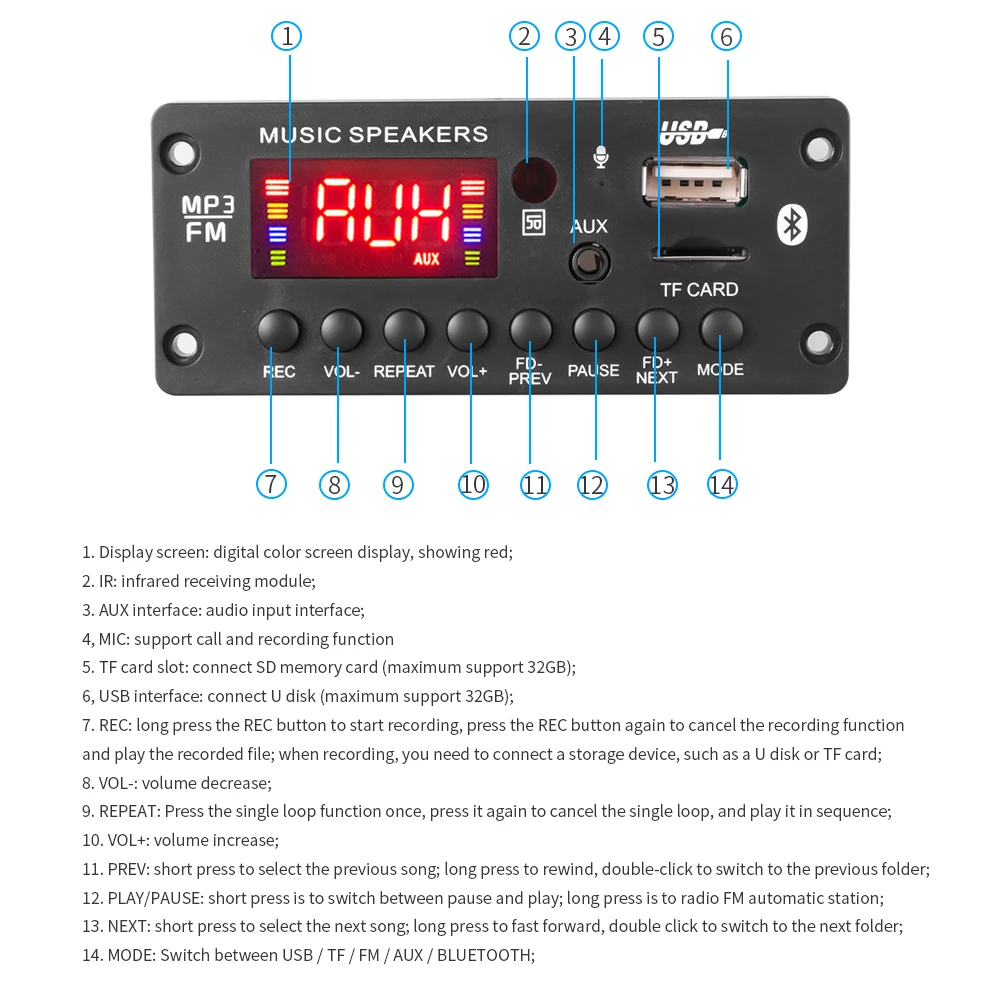

1. Button and interface function
1. Display screen: digital color screen display, showing red;
2. IR: infrared receiving module;
3. AUX interface: audio input interface;
4, MIC: support call and recording function
5. TF card slot: connect SD memory card (maximum support 32GB);
6, USB interface: connect U disk (maximum support 32GB);
7. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;
8. VOL-: volume decrease;
9. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;
10. VOL+: volume increase;
11. PREV: short press to select the previous song; long press to rewind, double-click to switch to the previous folder;
12. PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;
13. NEXT: short press to select the next song; long press to fast forward, double click to switch to the next folder;
14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;
Without Amplifier DC 12V
Model: JQ-D010BT
Bluetooth version 5.0
Bluetooth calling function
recording function
Music format: MP3/WMA/WAV/FLAC/APE lossless format music
Radio FM frequency: 87.5—107.5 MHZ
Folder switching function
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 12V
About the structure: Panel size: length 94 * width 40MM, the panel is surrounded by screw holes, the depth of the panel is 20MM
1. Button and interface function
1. Display screen: digital color screen display, showing red;
2. IR: infrared receiving module;
3. AUX interface: audio input interface;
4, MIC: support call and recording function
5. TF card slot: connect SD memory card (maximum support 32GB);
6, USB interface: connect U disk (maximum support 32GB);
7. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;
8. VOL-: volume decrease;
9. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;
10. VOL+: volume increase;
11. PREV: short press to select the previous song; long press to rewind, double-click to switch to the previous folder;
12. PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;
13. NEXT: short press to select the next song; long press to fast forward, double click to switch to the next folder;
14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;
| Weight | 0.055 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
| Radio Response Bandwidth | 87.5-107.5 MHZ |
| Voltage | 12V |
| Item Weight | 45g |
| Color | Black |
| Display Size | NONE |
| Brand Name | NoEnName_Null |
| Origin | Mainland |
| Special Features | MP3 Players |
| Certification | CE |
| battery | not include |
| power supply | DC 7V-15V |
| Feature 1 | Support folder playback |
| Feature 2 | Support call |
| Feature 3 | Support power off memory |
| Feature 5 | Folder switching function |
| Feature 6 | Support song format MP3 /WMA / WAV / APE / FLAC |
| Feature 7 | Bluetooth 5.0 |
| Feature 8 | Power 50W (2*25W) |
